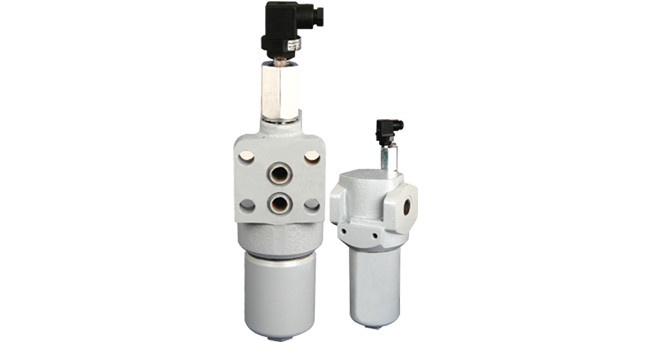

High Pressure Filter

High Pressure Filter

These filters are suitable for all mineral oils, synthetic hydraulic liquids and lubricating oils

Nominal Pressure : 250 Bar &400 Bar
Nominal Flowrate : 10 to 460 L/min
Seals : Nitrile (Viton or other on request)
Temperature Range : -10°C to + 100°C
Pressure Drop Indicator : Optical or Optical cum Electrical (4.2 bar or 6 bar Standard)
Element : Δ 30 bar (standard), 60 bar, 160bar & 330 bar on request
Filtering Media : Nominal Filtration: Paper (5 Mic, 10 Mic, 15 Mic, 25 Mic)
Nominal Filtration: SS Wire mesh (10 Mic, 25 Mic, 40 Mic…..up to 1500 Mic)
Absolute Filtration: Glass Fiber (1 Mic, 3 Mic, 6 Mic, 10 Mic, 20 Mic)
