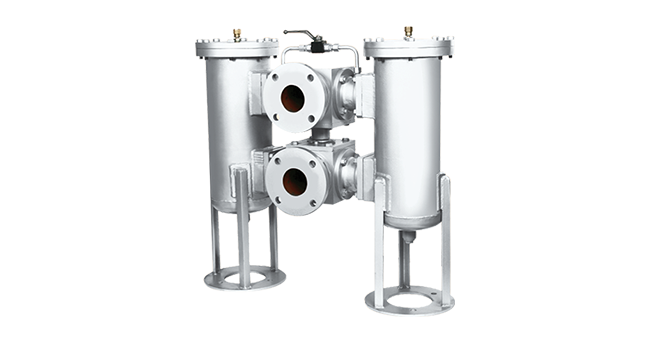

Fabricated Duplex Filters

Fabricated Duplex Filters: (with 3-way Ball valves for change-over)

The filters are suitable for all mineral oils, hydraulic oils and lubricating oils. These filters can also be supplied with suitable mineral of construction for water / chemical application.

Nominal Pressure : 25 Bar & 100 Bar
Nominal Flowrate : 361 to 1801 L/min (Standard Above 1801 L/min on request)
Seals : Nitrile (Viton or other on request)
Temperature Range : -10°C to + 100°C
Pressure Drop Indicator : Optical or Optical cum Electrical (1.5 bar&4.2 bar Standard)
Element : Δ 30 bar (standard), 60 bar, 160bar & 330 bar on request
Filtering Media : Nominal Filtration: Paper (5 Mic, 10 Mic, 15 Mic, 25 Mic)
Nominal Filtration: SS Wire mesh (10 Mic, 25 Mic, 40 Mic…..up to 1500 Mic)
Absolute Filtration: Glass Fiber (1 Mic, 3 Mic, 6 Mic, 10 Mic, 20 Mic)
