Conical Strainers

Conical Strainers

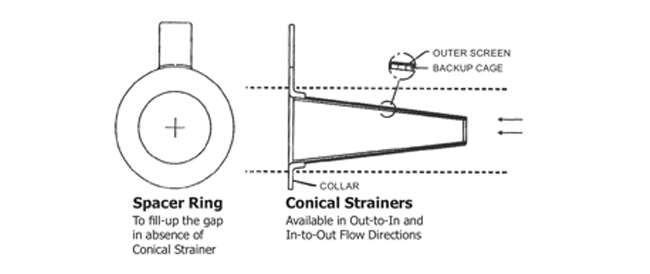

Conical strainers are widely used as SWEEPERS forflushing pipeline debris prior to commissioningplants &Equipment. Their main functions areto remove debris/forgotten objects such as weldingelectrode butts, slag, pliers, spanners, nut-boltsetc. These strainers protect screen of Y and basketstrainers, cartridge of microfine filters, expensivepipingequipment and gas compressor etc.Bhagwati provides special SPACER RING to compensatethe gap left by cone strainer collar when it is removedfrom installation. Conical strainers as per client’srequirement are also offered.

Size : 25 NB to 1000 NB
Collar Thickness : 3 mm-6mm
Perforated Support Cage : 1 mm to 3 mm thickness
Perforation Size : 3 Ø to 6 Ø
Screen Size : 6 to 200 mesh
Material of Construction : AISI 304, 304L, 316, 316L Monel& Steel
